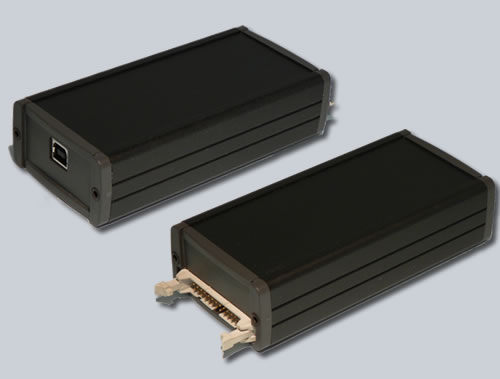

Our Multi-channel Analyzer is capable of collecting 1k, 2k, 4k or 8k spectra from a traditional
parallel output ADC. It makes it possible to extend the life of your old, but good working ADC
and connect it via USB or even Ethernet to your new modern computer system. It provides flexible
programmable interface for easy connection to your existing ADC equipment.
In other words - don't hurry to scrap your old NIM ADC. Instead - contact us to check the options to extend its life. Our customers successfully attached the USB-MCA to Silena 7411, Canberra 8075, Ortec 800 and others. In addition to high performance hardware, a simple to use MS Windows based Readout Software is available.
Features:
| Performance characteristics: | |
| Spectra size | 1024, 2048, 4096 or 8192 data channels |
| Capture time | 120 ns |
| Input specifications: | |
| Data input | Parallel, up to 13 bit, TTL/LVTTL |
| Control signals | TTL/LVTTL |
| Mechanical and environmental: | |
| Dimensions | 125 x 60 x 30 mm |
| Weight | 120 g |
| Operating temperature | 0 to +70� C |
| Power requirements: | |
| Powered by USB | +5 V / 50 mA |
| LAN with ext. power | +5 V / 380 mA |
| RS232 with ext. power | +5 V / 100 mA |
| Interface specifications: | |
| USB/LAN transfer speed | 1.5 Mbaud |
| RS232 transfer speed | 115.200 Kbaud |
